The Limit Lines tab defines upper and lower limits for the audio level at all test tones and enables or disables the limit check. All parameters can be set independently for the two AF channels 1 and 2.

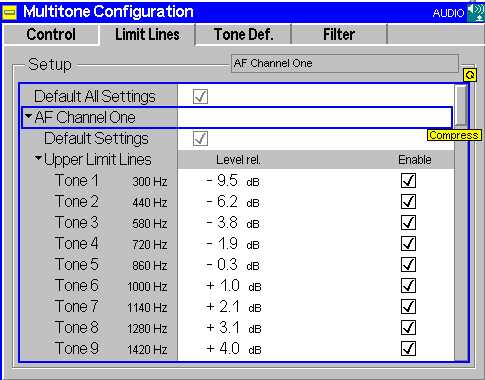

Multitone Configuration - Limit Lines
| Default Settings | The Default All Settings switch assigns default values to all fields in the Limit Lines tab (the default values are quoted in the command description in chapter 6 of this manual). Two additional default switches reset all AF Channel 1 or all AF Channel 2 settings, respectively. |
|
Remote control | |
| Upper Limit Line/ Lower Limit Line |
Upper and lower limit lines for all 20 test points can be
defined separately in the two table sections Upper Limit Line and
Lower Limit Line.
The tone nos. and the corresponding frequencies are indicated in the two left columns of the table as defined in the Tone Def. tab (see Test Tones (Multitone Configuration - Tone Def.)). For each tone, the upper and lower limit can be entered as a single value in dB. The corresponding Enable checkbox switches the limit line in the test diagram and the limit check on (if checked) or off. |
|
Remote control |
