Measurement Menu (Spectrum) - Measurement Results

The values represented in the measurement menu Spectrum can be divided into three groups:

• Setting values
• Scalar measurement results (marker values)
• The trace plotted as a function of time

These values are indicated in two parameter lines and the test diagram:

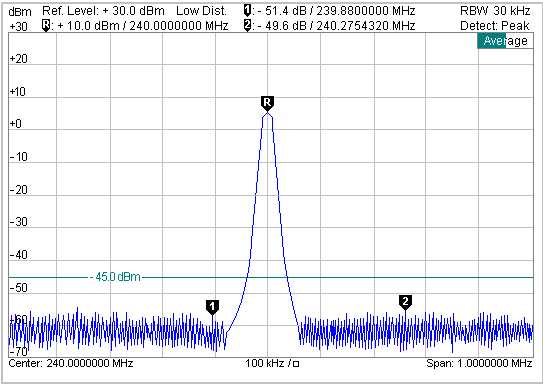

Parameter line 1/2 Test diagram with reference marker, delta marker 1 and 2 and D-line. Abscissa labels

Display of measurement results (Spectrum menu)

More:

Settings/ Scalar Measurement Results

Measurement Curves (Arrays)
