Saving Configurations (Data – Save)

The Save tab in the Data popup menu stores the current instrument settings to a configuration file. Configuration files have the extension *.SAV and contain the following information:

• All user-defined settings of a particular function group and test mode comprising all measurement settings (defined in the measurement configuration menus) and all general settings (defined in the Connection Control menu)
• For Signalling test mode, all settings concerning signalling (connection setup etc.)
• For the Base system, the current function group, test mode and measurement menu.

The configuration of several function groups and test modes can be written to a common configuration file. The configuration of the current session is automatically stored in the non volatile RAM before a session is terminated and re-activated when the CMU is started next time; see also Chapter 1, section CMU VersionManager.

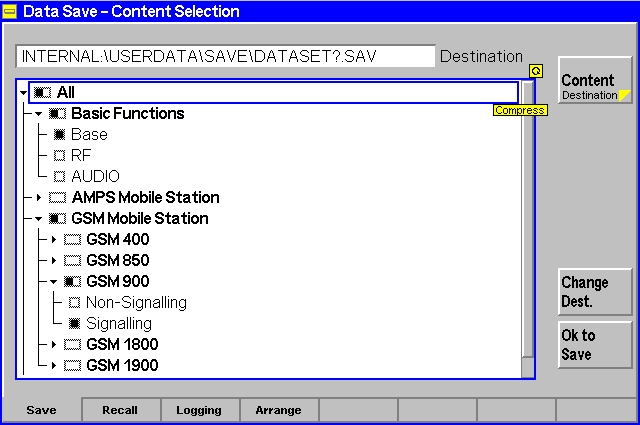

Data – Save menu

More:

Selection of function groups

Content Destination

Change Destination

OK to Save
