A log file can be transferred to a PC using the functions of the Arrange
tab or via GPIB bus using the MMEMory:DATA command. Rohde
& Schwarz provides an evaluation software tool for log files, the
Message Viewer (option R&S CMU-Z49; the extended version R&S
CRTU GP01, stock no. 1139.7590.02, allows to edit layer 3 messages). After

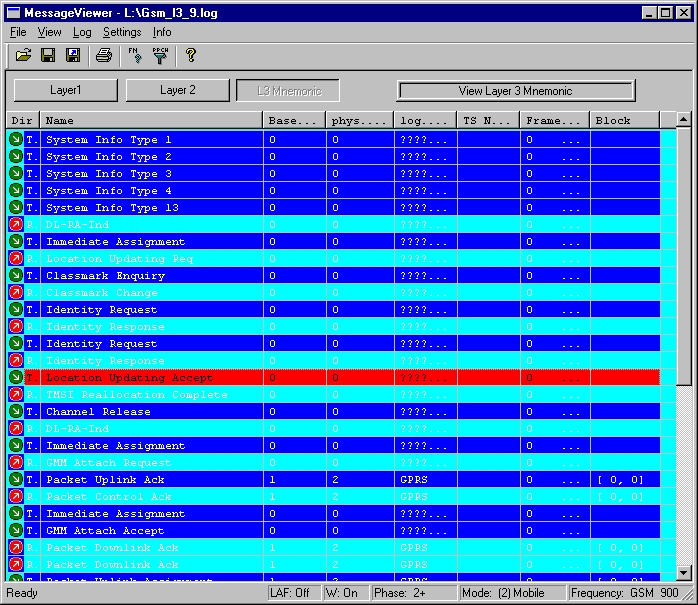

loading the log file into the Message Viewer, the information can
be evaluated as shown in the following examples. For more information
please refer to the operating manual or help for the Message Viewer.
Evaluation of log files
