File Selection

The stored files can be selected from a tree view in the center of the menu. The tree can be expanded and compressed using the roll-key and the ON/OFF key (see Chapter 3, Expanding menu tables). It starts from the nodes for the EXTERNAL and INTERNAL mass storage devices:

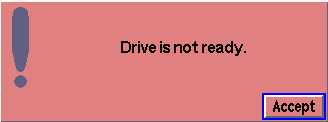

EXTERNAL Root directory of the external storage device. Depending on the instrument configuration, this can be a floppy disk or a PCMCIA memory card, inserted in slot 0 (right side) of the PCMCIA interface. The Data menu does not discriminate between the two slots. If an attempt is made to expand the EXTERNAL directory while no external storage device is present, the CMU displays the following message:

  • Accept the message, insert a suitable storage device and try again to expand the EXTERNAL directory and view ist contents.
INTERNAL Root directory of the section on the internal hard disk that is reserved for mass storage.
