Change Destination

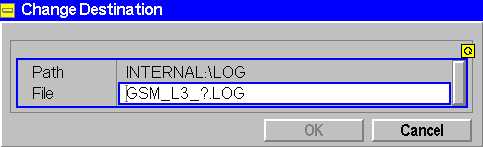

The Change Dest. softkey opens a dialog to specify the name and path of the created log file.

Editing the Change Destination dialog is optional: By default, the CMU stores log files to the directory INTERNAL\LOG and uses the file names GSM_L3_?.LOG where the question mark is replaced by current numbers that are automatically incremented, starting with zero (auto-increment function). To create more than 10 different log files, another name or destination must be specified.

Note: A second or third question mark in the file name extends the auto-increment function so that up to 999 logging files can be stored. Keep in mind the memory of the internal hard disk when using this feature.

Selecting OK to Save closes the dialog window and stores the inputs made. Pressing Cancel or Change Dest. again without selecting OK to Rename closes the dialog box, discarding all inputs made.

Remote control
The commands for the layer 3 message log belong to the GSMxxx-MS Signalling function groups:
MMEMory:L3Msg:CDEStination <FileName> [,<msus>]
