SOURce:DM:CLOCk:FREQuency <Frequency>
|
<Frequency> |
Parameter description |
Def. value |
Def. unit |
|
1.219 MHz to 40.000 MHz |
Frequency of network-specific system clock |
13 |
MHz |
|
Description of command |
FW vers. | ||||||
|

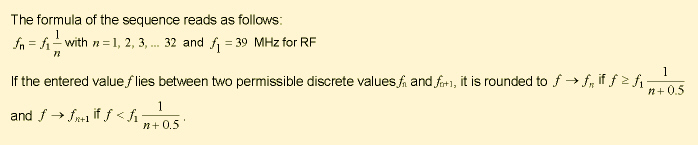

This command defines the frequency at the output REF OUT2. In FW V2.15ff, the frequency entered is rounded to the following discrete values: |
³V 1.15 | ||||||
| 40.000 MHz, | 20.000 MHz, | 13.333 MHz, | 10.000 MHz, | 8.000 MHz, | 6.667 MHz, | 5.714 MHz, | |
| 5.000 MHz, | 4.444 MHz, | 4.000 MHz, | 3.636 MHz, | 3.333 MHz, | 3.077 MHz, | 2.857 MHz, | |
| 2.667 MHz, | 2.500 MHz, | 2.353 MHz, | 2.222 MHz, | 2.105 MHz, | 2.000 MHz, | 1.905 MHz, | |
| 1.818 MHz, | 1.739 MHz, | 1.667 MHz, | 1.600 MHz, | 1.538 MHz, | 1.481 MHz, | 1.429 MHz, | |
| 1.379 MHz, | 1.333 MHz, | 1.290 MHz, | 1.250 MHz | ||||
